JK/JL/JT TOWING REINFORCEMENT TIE ROD KIT

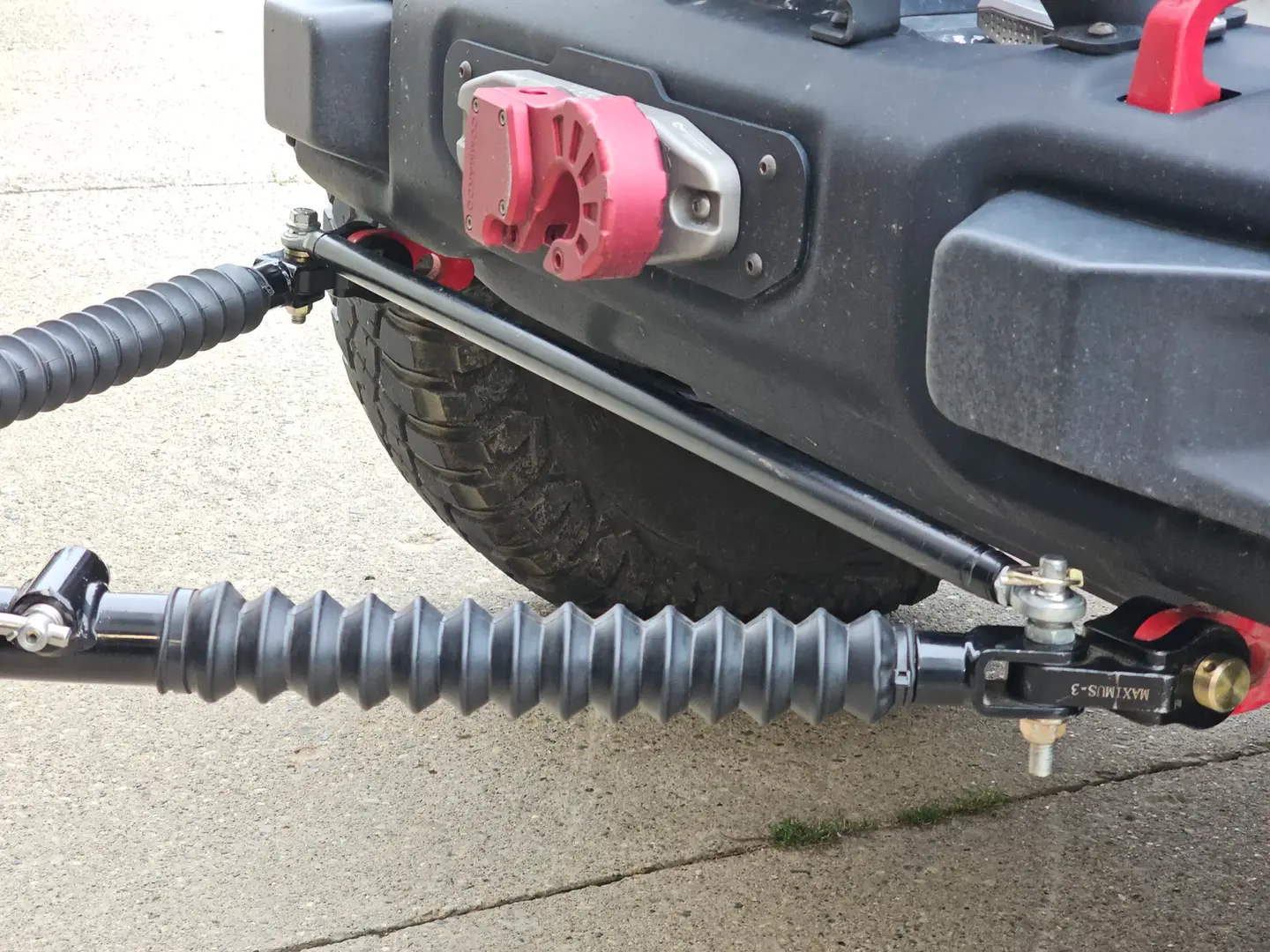

The MAXIMUS-3 TOWING TIE ROD provides a 3rd triangulated component, which prevents the tow-bar arms from spreading outwards in the event of surge break delay or malfunction.
The MAXIMUS-3 QUICK DISCONNECT SYSTEM is a quick and easy way to remove your MAXIMUS-3 TIE ROD from your adapters, so you can easily connect to your tow bar. The system allows you to remove one end of your tie rod and fold it up with your tow bar or remove both ends for complete removal.

IMPORTANT: MANDATORY FOR FLAT TOWING
IF YOU ARE FLAT TOWING YOUR JEEP BEHIND A MOTORHOME/RV the Towing Tie Rod is MANDATORY FOR SAFETY. The Maximus-3 Towing Tie Rod (PRT # JL1020TR) triangulates your tow bar at the adapters connections preventing the tow-bar arms from spreading outwards in the event of surge break delay or malfunction. The Tie Rod will keep your towing load forces straight into the setup to prevent any side stress loads especially during braking and hard turns.

 ***WARNING***

Failure to install properly can results in non-warranty damage, property damage, personal injury or death. When flat towing always make sure you regularly check your equipment & pins to ensure all products are secure. Maximus-3 is not responsible for property damage, personal injury or death.

Note: Towing Adapters required in order to attach a tow bar – sold separately.

Includes:

• 1” Diameter Steel Tie Rod: Eye to Eye Length 33”(Min) – 34 ½”(Max)

• ½” Diameter Quick Disconnect Pins:

• Bolting Lengths: BLUE OX: 2 5/8", ROADMASTER/READY BRUTE 3 3/4", DEMCO/NSA: 3 1/4"

• Stationary Bolt

• MATERIAL: Steel

• SURFACE FINISH: Powder Coat / Zinc Plated

• ADDED WEIGHT: ? Lb. (approx.)

• MADE IN: USA

Estimated Installation Time: 30 Minutes

Installation Difficulty Level: Easy

Installation Guide: Towing Tie Rod & Adapters: PDF

 JK Wrangler /JL Wrangler /JT Gladiator
