FORD BRONCO FRAME HORN TIE-IN REINFORCEMENT BRACKETS

No reviews
SKU BR1005FB
Price

$175.00

Quantity

OVERVIEW

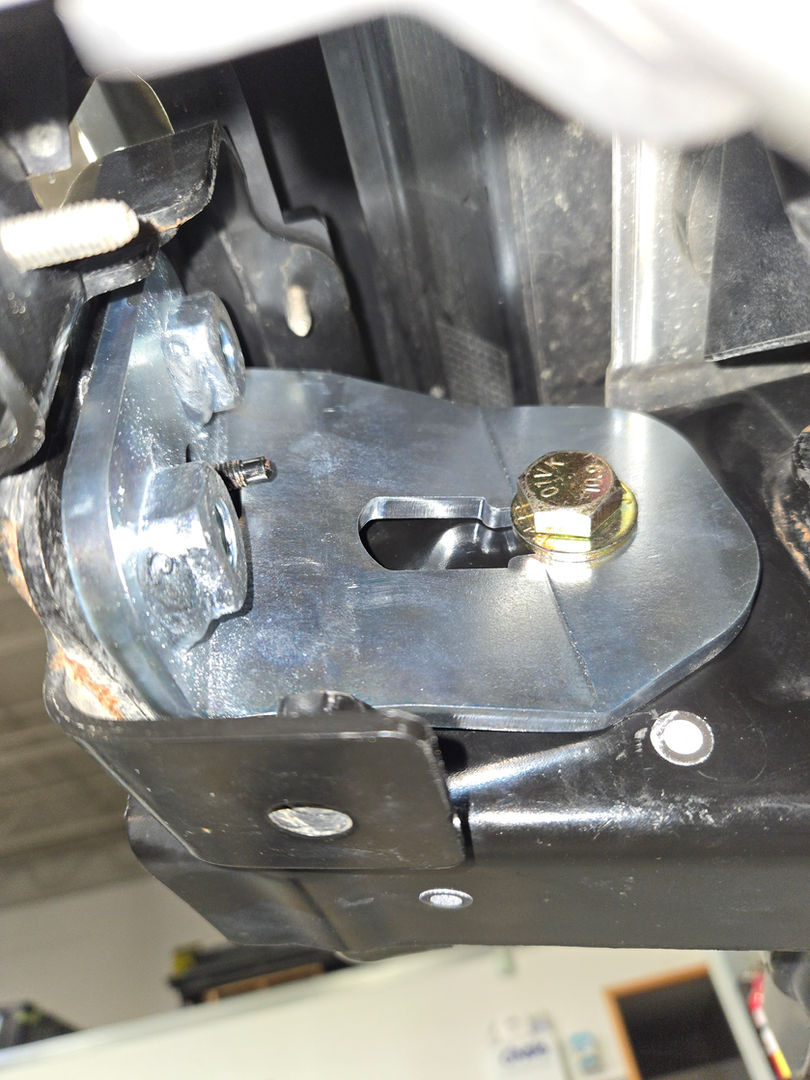

The MAXIMUS-3 Bronco Frame Horn Reinforcement Brackets kit will replace your factory nut plates that go behind the frame to add more structural reinforcement to the inherently weak factory frame bumper mounts which are prone to failure under load.  Factory/OEM frame horns are prone to fatigue failure, especially when used to mount flat towing equipment. Additionally, factory weld nuts can shear the back plates and pull through the large mounting slots on the frame horns when using a winch at pull loads greater than 8,000 Lb.

The MAXIMUS-3 Frame Horns Reinforcement kit is made from 1/4" thick steel and is designed with pretension features to anchor the frame horns (bumper mounting flanges) to the chassis box frame without compromising the factory frontal collision crumple zones. This reinforcement brackets kit is a two-piece (inner & outer) set for each side that ties the frame horns to the main chassis box frames with four (4) heavy-duty M12 bolts. The design is pre-tensioned to eliminate stretching, which will allow you to safely use your MAXIMUS-3 winch saddle, stock bumper, aftermarket bumper winch or towing gear.



INCLUDES

  • (2) Frame Horn Inner Brackets
  • (2) Frame Horn Outer Brackets
  • Hardware Kit



COMPATIBILITY:

  • This kit is compatible with the factory/OEM modular steel bumper.
  • This kit is compatible with the factory/OEM capable steel bumper.
  • This kit is compatible with the Bronco Raptor with a factory modular steel bumper.
  • This kit is compatible with all frame horn integrated aftermarket bumpers, recovery points and towing gears.

KEY FEATURES & TECHNICAL SPECS

  • Reinforces the factory bumper mounts frame horns to prevent a dangerous catastrophic failure to the frame.

  • Intended for use with all frame horn integrated aftermarket bumpers, recovery points and towing gears.
  • Includes heavy duty class 10.9 hardware
  • Finish: Zinc plated
  • MATERIAL: ¼” Thick Steel
  • PROCESS: Flat Laser, Press Brake, Welding
  • MADE IN: USA

INSTALLATION

Install Guide: Bronco Frame Horn Tie-In Reinforcement Brackets

FITS

Ford Bronco 2021 and up

Ford Bronco Raptor

Factory Plastic Bumpers, Modular Steel Bumpers & Most Aftermarket Bumpers



Reviews

Rated 5 out of 5 stars.
Based on 3 reviews
3 reviews
  • Tom P 3 days ago
    Rated 5 out of 5 stars.
    Verified
    Adds strength, easy install.

    These are obviously high quality parts and they fit perfectly. There was only one hole on both side that needed to be drilled out, which was very easy. The best part is that you are only drilling larger, so you do not have to precisely locate it. It's probably a 3/8" hole being drilled to 1/2". Very easy. This is a piece of mind modification for me, there is no glory in it. You can barley see it unless you really look for it. I plan on flat towing the Bronco and wanted something stronger.

    Was this helpful?
  • LucasOct 05
    Rated 5 out of 5 stars.
    Verified
    Even better than I anticipated

    Putting a 10,000 lb winch on my Bronco, and I read that the frame horns were a weak point for winching. After some research, I found the Maximus-3 tie-in reinforcement brackets. Holy moly are they beefy. When I removed my bumper and the old brackets, the difference couldn't have been clearer. These are heavy duty and well made. Installation was easy. I haven't done my first recovery yet, but I feel a lot more comfortable knowing these are on there.

    Was this helpful?
  • NobleJul 02
    Rated 5 out of 5 stars.
    Verified
    Excellent Product

    I tried other products that claimed they worked with the factory bumper, and, in reality, they didn't or were missing the hardware to do so. However, these brackets had everything in one package and were easy to install. These reinforcements are an important add when installing winch!

    Was this helpful?
