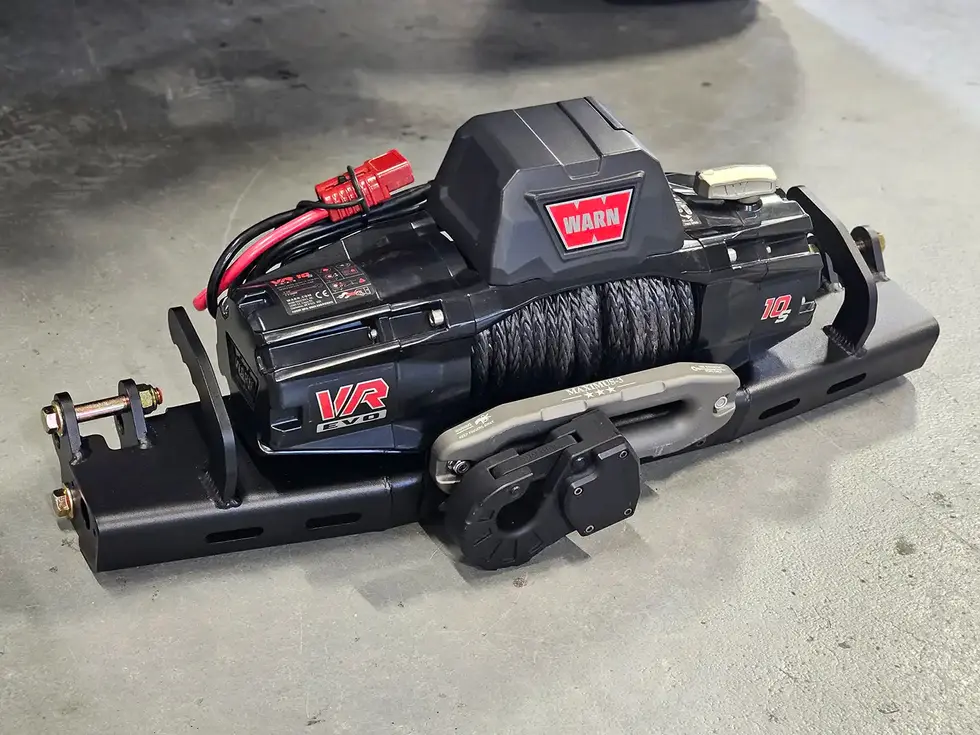

The Maximus-3 Ford Bronco Winch Saddle is a complete bolt-on application for Ford BroncoFactory Steel Front Bumper. Absolutely no cutting or modification required and installation does not requre removing the bumper. This plate will accommodate any winch of your choice including Warn Evo Series winches, most small body and competation style winches up to 12,000 pounds. Brilliantly engineered to provide a structurally strong and stiff mount for your winch.

COMPATABILITY:

• This kit is compatible with the factory modular steel bumper.
• This kit is compatible with the Bronco Raptor with a factory modular steel bumper.
• This kit is compatible with the factory capable steel bumper - requires replacing the D-rings with factory tow hooks.

WARNING:

•  You must have frame horn reinforcement brackets installed with this kit to safely use your winch saddle for recovery for all trim models, including the Raptor.

The MAXIMUS-3 Bronco Frame Horn Reinforcement Brackets kit will replace your factory nut plates that go behind the frame to add more structural reinforcement to the inherently weak factory frame bumper mounts which are prone to failure under load.  Factory/OEM frame horns are prone to fatigue failure, especially when used to mount flat towing equipment. Additionally, factory weld nuts can shear the back plates and pull through the large mounting slots on the frame horns when using a winch at pull loads greater than 8,000 Lb.

The MAXIMUS-3 Frame Horns Reinforcement kit is made from 1/4" thick steel and is designed with pretension features to anchor the frame horns (bumper mounting flanges) to the chassis box frame without compromising the factory frontal collision crumple zones. This reinforcement brackets kit is a two-piece (inner & outer) set for each side that ties the frame horns to the main chassis box frames with four (4) heavy-duty M12 bolts. The design is pre-tensioned to eliminate stretching, which will allow you to safely use your MAXIMUS-3 winch saddle, stock bumper, aftermarket bumper winch or towing gear.

Please Note:

• If you are driving with the Winch Saddle mounted:
• Front Bumper Parking sensors must be deactivated to avoid a continuous warning sound.
• Front camera view will be diminished.
• Collision Assist Radar must be set to 'normal' using Featured settings.

Watch the video: WINCH SADDLE

• Winch Mount Plate

• Fairlead Bracket

• Connection Tabs

• Drop-in Hooks

• Connection Pins 7/8"

• Hardware

• Mounts directly to the vehicle’s frame horn

• Easy installation

• No need to remove the bumper

• No cutting required. 100% bolt-on

• Compatible with the Factory Modular Front Bumper( Steel Bumper).

•  Load rating: 12,000 pounds

• MATERIAL: One-Piece Heavy Gauge 1/4-Inch Steel Plate. Process: Laser Cut, Press Brake, & Welding

• SURFACE FINISH: Durable Satin Black Powder Coat

• ADDED WEIGHT: 34 Lb. (approx.)

• MADE IN: USA

Estimated Installation Time: 1 Hours

Installation Difficulty Level: Easy

Install Guides: Bronco Winch Mount Saddle

Install video: Winch Mount Saddle Install

VIDEO

Modular Steel Factory Bumper

Steel Capable Factory Bumper- Requires replacing D-rings w/ factory tow hooks

Ford Bronco 2021 and above

Ford Bronco Raptor 2022 and above w/ Frame Reinforcement Brackets
